Fully Automatic Odd form pick&place machine-HC automation

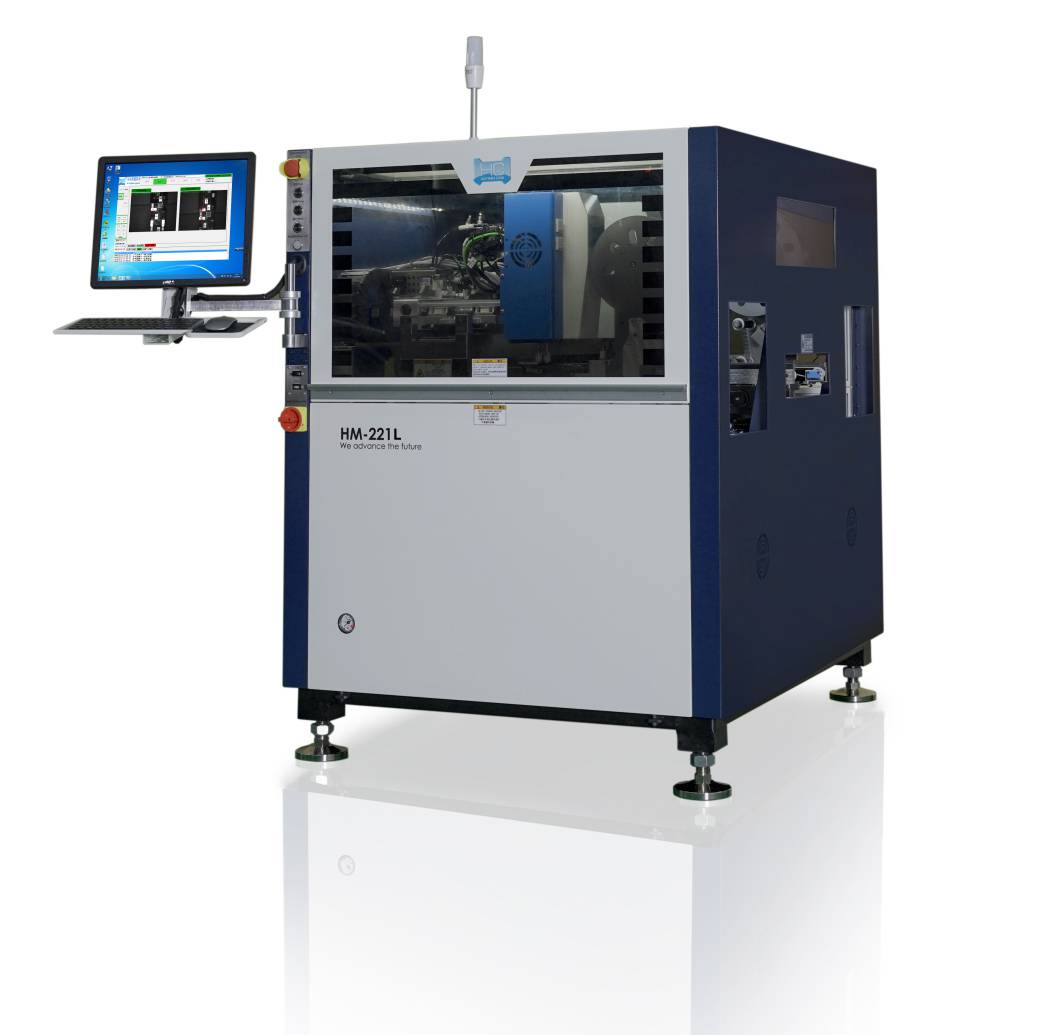

HM-221

Fully Automatic Odd form pick&place machine

1、Application for PCB : code label、Sticker、Pot slices、Thermal conductive silicone、Shielding cover etc.
2、Application for FPC: Adhesive, PI, conductive adhesive, double-sided adhesive, QR code label, steel sheet (cold paste), foam, Pot slices, etc.
3、Application for Display module :Radiated graphite flake, conductive adhesive, double-sided adhesive, qr code label, etc.
4、Lens, chip, components and other protective film, high temperature adhesive paper, code label, etc.
5、Other industries have precision pasted surface mount products.

Watch Video https://youtu.be/5qDvQ1dZvhs

Double placement head, four nozzles

Vacuum pump
The equipment uess silent vacuum pump, low noise and stable negative pressure source, and the gas source consumption of our equipment is low to 1L/Min, which is far less than that of other vacuum generators using the vacuum generator, which consumes more than 100L/Min，For the production of the site to save gas source usage, the gas source consumption is too large, increasing the load of the factory air compressor, which can cause the production line air pressure instability to influence the production.

High precision high-speed positioning system

HM-221Frame
High HM-221precision and high strength integrated steel frame with higher reliability, guarantee the long-term high-speed and stable products of the equipment.

CCD

Double placement head, four nozzles

Vacuum pump
The equipment uess silent vacuum pump, low noise and stable negative pressure source, and the gas source consumption of our equipment is low to 1L/Min, which is far less than that of other vacuum generators using the vacuum generator, which consumes more than 100L/Min，For the production of the site to save gas source usage, the gas source consumption is too large, increasing the load of the factory air compressor, which can cause the production line air pressure instability to influence the production.

High precision high-speed positioning system

HM-221Frame
High HM-221precision and high strength integrated steel frame with higher reliability, guarantee the long-term high-speed and stable products of the equipment.

CCD

Repeat Position Accuracy (@6 Sigma,Cpk ≥ 2.0)

±0.005mm

Accuracy (@6 Sigma,Cpk ≥ 2.0)

±0.05mm

efficiency

UPH4000-5500 point

The number of suction nozzle

2-4pcs

Number of feeder

2-4pcs

parameter

Carrier board size

320*280*10mm

Feeder width

6100mm

Suction nozzle spacing

50mm

Track number

three sections

Transport Direction

L-R L-L

Plywood method

Jacking cylinder + jacking knife + tablet

Vehicle mode

Carrier, PCB board, Tray plate

Connection height

Industry standard 900±20mm

Connected signal

Industry standard 14pin SMEMA connector

camera	130W Industrial Camera
CCD	25mmzoom lens
Upper light source	50coaxial white light (optional)
Imaging field of view	50*40mm
Lower camera	200W Industrial Camera
Lower lens	25mm zoom lens
Lower light source	70 coaxial white light/100 square shadowless light (optional)
Imaging field of view	80*80mm
Operating environment
Power Source	AC:220±10%,50/60HZ 1Φ 2.5KW
Air Pressure	0.6±0.1Mpa
Operation Temperature	26±5°C
Operation Humidity	RH30-60%
Machine Weight	≈1000Kg
Approximate Dimensions	120014001550(L-W-H)
Operation System	win7 windows 10
Acoustic Noise Level	Less than 87dB
